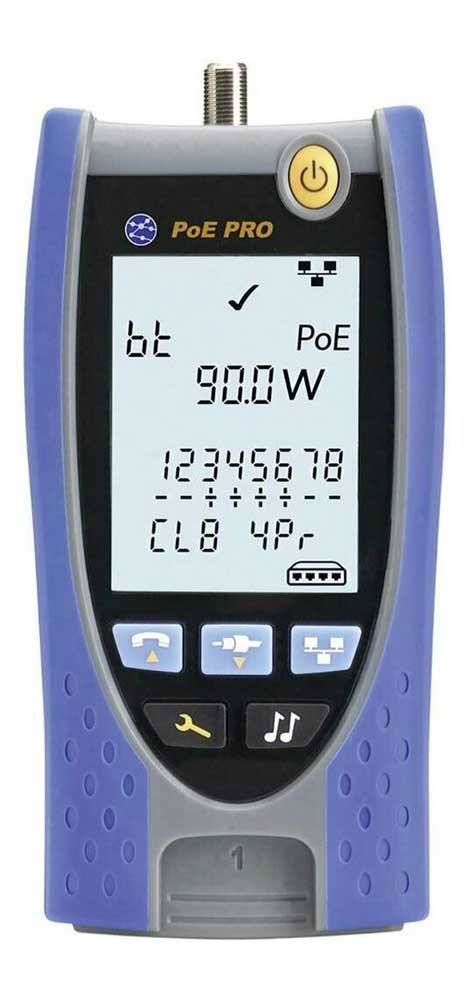

Trend Networks VDV II PRO PoE Network Cable Verifier R158004
Product Code: 560VDV-II-PRO-POE
Inventory Status:
discontinued
The PoE Verifier Pro helps you avoid trial and error when installing, maintaining, and troubleshooting networks where PoE is implemented. Before, engineers had to know all the various standards, device power outputs, and cable lengths to be sure a device was working properly. PoE Pro identifies the class of PoE source and power available to a PoE device, regardless of cable length, cable quality, or other factors.
- Identify cable faults, avoiding trial and error
- PoE Detection: Identifies the IEEE standard, class, type, maximum power and available voltage
- Provides clear Pass / Fail result to IEEE 802.3af / at / bt standards
- Identifies analogue (PBX) and digital (ISDN) telephone services
- Displays the network speed and duplex information
- It detects high voltages and provides visual and audible warning to avoid damage to the tester
- Compatible with most non-standard PoE injectors
- Power Extension Test: By pressing the network button for 3 seconds, PoE Pro increases the power demand up to a maximum of 90 watts
Main Features
- It supports RJ45, RJ11 / 12 and coaxial connections
- Wire map for wiring errors, split pairs, shorts and open circuits
- Check cable shielding
- Cable length
- Distance to open / short circuit (TDR)
Cable Tracking
- Analog and digital tone generator
- Compatible with common cable tracing probes
Active Networks Test
- Flashing of the Door
- Multimedia service detection - Ethernet, analog / digital and ISDN telephone service
- 10/100/1000 Mb / s Ethernet Speed Detection
Other Features
- Instant Results: The results are shown as soon as the cable is connected
- Larger 2.9 "screen
- Backlight
- Overvoltage Protection
PoE test
- PoE validation to ensure proper device and network operation
- 802.3bt High Power PoE support (up to 90 watts)
- Compatible with most non-standard PoE injectors
- Identify the type of PSE (af / at / bt)
- Identifies the PSE class from 0 to 8
- Determines the maximum available power (watts) at the location of the device
- View the voltage
- Shows how many pairs are using PoE
Kit contents
PoE Pro - Data Cable and PoE Verifier. Includes 1 tester, 1 dual port remote unit, 1 coaxial remote unit, 1 alkaline battery, 1 multi-language user guide, 2 x 390mm RJ45 crocodile clip cables, 2 x 150mm RJ45 to RJ45 shielded cables, 2 x RJ12 to RJ12 cables. 100mm, 1 x 230mm F plug to F plug cable, 1 F-81 connector, 1 BNC female to F male adapter, 1 BNC female to F female adapter, 1 RCA female to F male adapter, 1 RCA female to F female adapter , 1 x pocket card with wiring diagrams, 1 x carrying bag.
Product Codes: VDV II PRO POE, R158004, PoE Pro
Brand: Ideal Networks, Trend Networks
