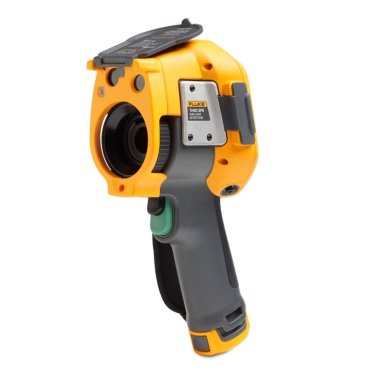

Fluke Ti450 SF6 60 Hz Thermal Imaging Camera for SF6 Gas Detection
Product Code: 560TI450SF6-60HZ
Fluke Ti450 SF6 60Hz Thermal Imaging Camera for SF6 Gas Detection
Infrared for every day, detection of SF6 gas when needed.
Distribution substation equipment, including switches and transformers, switch and transform high voltages and currents. Switching these high voltages can cause the production of electric arcs, which pose a safety and manufacturing risk. SF6 (sulfur hexafluoride) gas is used for insulation purposes in this equipment . Indeed, this gas is a more efficient alternative to insulating materials such as water and oil, thanks to its ionization properties for suppressing electric arcs. However, as it is a powerful greenhouse gas, it is important to ensure that any gas leaks are detected and resolved appropriately.
The new Fluke Ti450 SF6 thermal imaging camera allows you to detect leaks of this gas with greater efficiency and savings of money as it allows you to switch from the classic IR to SF6 detection directly in the field. Additionally, the instrument's low cost makes it affordable to purchase, which will allow gas and infrared inspections to be performed at any time without having to pay expensive rental fees or contractors.
Fluke Ti450 SF6 defines new levels of performance and usability. Thanks to the practical "point and click" handle, even the most inaccessible points are easy to diagnose. With the new SF6 detection function, you can get the analyzes you want when you need them, anywhere, anytime. Companies, by tracking SF6 leaks, no longer want to find themselves in the awkward situation of having to perform inspections and manage high costs for purchasing or renting equipment.
FEATURES
- Detect the location of the SF6 leak without shutting down the equipment
- Enter / exit button for quick switching between gas images and infrared mode
- 320 x 240 resolution for gas and infrared images; the SuperResolution mode reaches 640 x 480, only in infrared mode
- Focus images in infrared and gas modes at the touch of a button with LaserSharp® autofocus
- Connect the Imager wirelessly to the Fluke Connect® system so you can make faster decisions. Team members can see the same data and help identify the problem, or authorize work before leaving the inspection site.
- Pencil and notepad no longer needed:
- IR-PhotoNotes ™ annotation system, which captures digital images of equipment details, such as serial number and surrounding area conditions
- It allows you to record any additional notes with voice annotation and save this information with the image
- See more details with optional smart lenses - no calibration required and can be used with all compatible thermal imaging cameras
- Optimize images, perform analyzes, quickly generate customizable reports, and export images in your preferred format with the SmartView® PC software included with the instrument
- Detect clear, precise and always in focus images across the entire field of view with MultiSharp ™ focus
- Compact and lightweight, fits your toolbox
Performance of Detection of SF6 gas
Annual gas loss rate <4.5 Kg | Excellent environmental conditions are required; significant temperature differences between gas and background, no wind |
Annual gas loss rate from 4.5 to 22.6 Kg | Good environmental conditions are required; moderate temperature differences between gas and background, no wind |
Annual gas loss rate> 22.6 Kg | Easy detection in fair conditions |
For more information see the brochure and the technical information on the danger of SF6 gas
|  |
