Fluke 1503 Insulation Tester 500 to 1000V

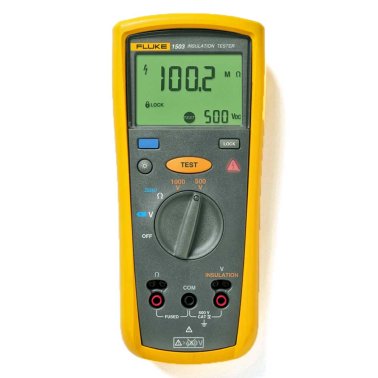

Fluke 1503 Insulation Tester

The Fluke 1503 Insulation Tester is compact, rugged, reliable and easy to use. With multiple test run voltages, it is the ideal choice for a variety of troubleshooting, commissioning and preventive maintenance applications. Some additional features, including the remote test probe, allow you to reduce costs and time consuming when performing tests.

• Insulation test range: 0.1 MΩ to 2000 MΩ
• Insulation test voltage: 500V, 1000V
• The remote test probe helps facilitate repetitive and challenging testing.
• Live circuit detection, to avoid the insulation test when measuring voltage> 30V, providing greater user protection
• Automatic discharge of capacitive voltage for greater user protection
• AC / DC voltage: 0.1V to 600V
• Continuity 200 mA
• Resistance: 0.01 Ω to 20.00 kΩ
• Save battery power thanks to the automatic shutdown function
• The large backlit display makes it easier to read the measurements
• Overvoltage classification category CAT IV 600 V for added safety
• Remote control test probe, test leads and leads, alligator clips supplied with the tester
• Compatible with the optional Fluke TPAK Magnetic Hanging System which allows you to have your hands free for other tasks
• Four AA alkaline batteries (NEDA 15A or IEC LR6) for a minimum of 1000 insulation tests
• One year warranty

Supplied:

• Remote test probe
• Test leads
• Probes
• Crocodile tweezers
• User manual

More information in the product datasheet
