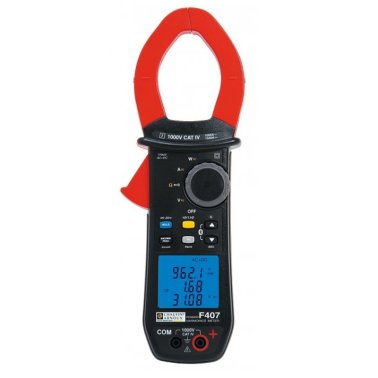

Chauvin Arnoux F407 Clamp Multimeter TRMS AC / DC 1000A / 1000V with PQ analysis
SKU: 560F407
On Order
Brand:
Chauvin Arnoux
Pinze_C..e_F.pdf
(1.82 MB)
Resolution - N. Points:
10,000
AC voltage (resolved / exported):
0.15V / 1000V RMS (1400V ridge)
DC voltage (resolved / exported):
0.15V / 1400V
AC current (resolved / exported):
0.15A / 1000A RMS (1500A ridge)
DC current (resolved / exported):
0.15A / 1500A
Resistance (resolved / exported):
0.1Ω / 50MΩ
Capacity (resolved / exported):
No capacitance
Frequency (resolved / exported):
5Hz / 20KHz
Additional Measures:
PQ analysis, Wattmeter, Continuity
PC interfaces:
Bluetooth
IP protection degree:
IP54
Lead time expected: working days:
15
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €601.00 | €733.22 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Chauvin Arnoux F407 Clamp Multimeter TRMS AC / DC 1000A / 1000V with PQ analysis
The F407 clamp is particularly suitable in the sectors of the production and distribution of low voltage electricity, industries, railways, for lift operators or other experts in lifting and transport equipment.
Equipped with a fast 12-bit TRMS digital acquisition system, the F407 clamp offers a very precise measurement. Thanks to their wide bandwidth and high crest factor, these clamps make precise measurements, whatever the nature of the signal.
The large, backlit 10,000-dot display offers excellent readability in all circumstances. Simple to use, each position of the rotary switch corresponds to a function.
Features:
- Current 1000AAC / 1500ADC
- AC and DC voltage up to 1000V
- Powers W / VA / var, FP and DPF
- THD-f and THD-r
- Harmonics up to the 25th degree
- Resistance and sound continuity
- Analysis of Min, Max, Peak ± values on all functions
- TrueInrush current measurement
- Data logging
- Bluetooth interface and PC software
Supplied:
- Clamp multimeter Chauvin Arnoux F407
- Copy of test leads
- Pair of test leads
- Crocodiles couple
- Soft case
- 4 AA batteries
