Strip Tulipano Female 36 poles 2.54mm pitch Kontek 8779501136400
Product Code: 3258779501136400
Inventory Status:
discontinued
KONTEK COMATEL 877.9501.1.36.400

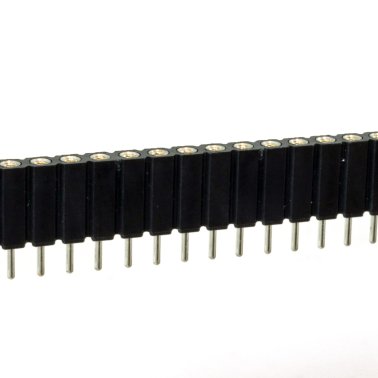

Female strip 36x1 tulip shaped, 2.54mm pitch with single insulating plastic 7mm.
- Accepts 0.635mm square pins and 0.70 / .080mm diameter round pins
- Pitch: 2.54 mm
- Number of routes: 36
- Type: single row
- Insulating material: black thermoplastic polyester UL 94 V0
- Pin material: brass or phosphor bronze
- Clip: copper-beryl
- Current: 3A max
- 1000 VAC dielectric insulation
- Insulation resistance: 1000 MegaOhm minimum

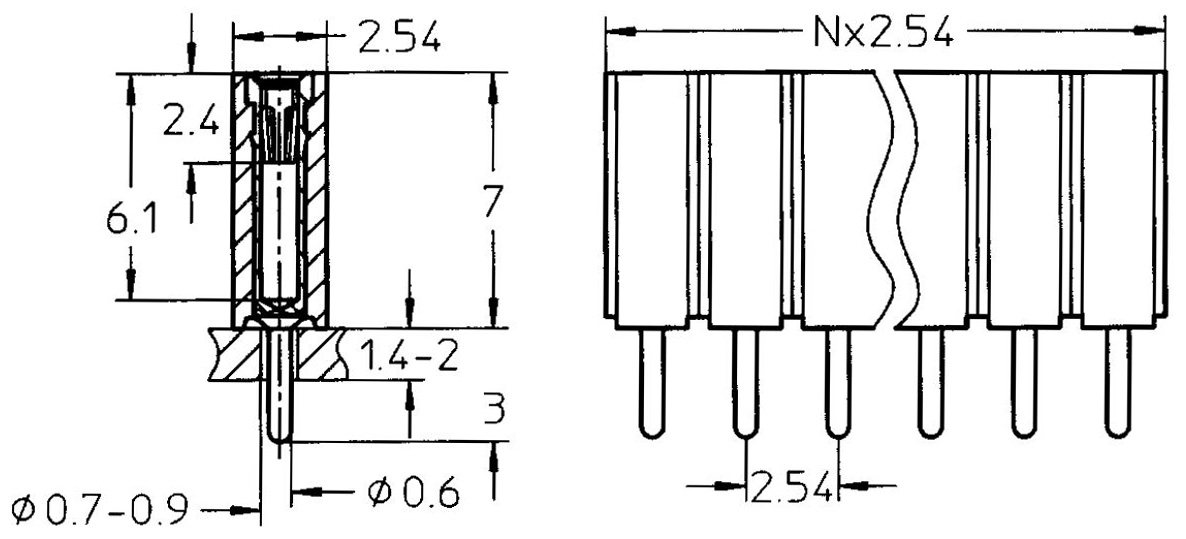

Dimensions and overall dimensions
Product Code: 8779501136400, 877-9501-1-36-400,877.9501.1.36.400, 877 9501 1 36 400
