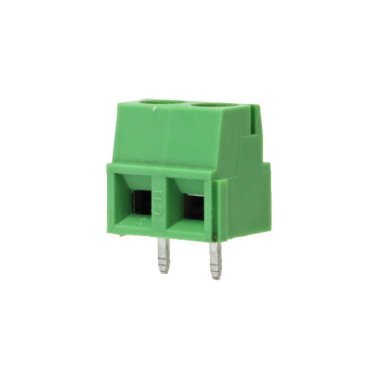

Stelvio CPP3.5 / 2 Mini PCB screw terminal block 2 ways pitch 3.5mm 10A 160V
SKU: 324CPP3.5-2VE
In Stock
Brand:
Stelvio
Stelvio.._ds.pdf
(372.63 KB)
Clamp type:
PCB carriage screw
Step:
3.5 mm
Contact number:
2
Voltage:
160 V
Current:
10 A
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €0.927 | €1.13094 |
| 1 | Promo | €0.88065 | €1.074393 |
| 10 | 10% | €0.79259 | €0.96696 |
| 50 | 25% | €0.66049 | €0.805798 |
| 100 | 35% | €0.57242 | €0.698352 |
| 1000 | 60% | €0.35226 | €0.429757 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Stelvio CPP3.50 / 2 Miniature Terminal from Modular PCB
Mini terminal block from printed circuit to trolley for applications where reduced overall dimensions are required. It is equipped with captive screws and it is possible to place several CPP terminals (2 or 3 poles) side by side without losing pitch.
Main features
- Nominal Voltage: 160 Volts
- Nominal Current: 10 Ampere
- Pitch: 3.50mm
- Number of Routes: 2
More information in the product datasheet.
Dimensions and Footprint
Product codes: 691 214 110 002 S, 691214110002S, CPP3,5 / 2 VE, CPP3.5 / 2 VE
