Request Quote
Finder 18.91.8.230.0042 Indoor Motion Detector for Dark Gray Wall Boxes
S18IT.pdf
(3.78 MB)
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €69.25 | €84.48 |
Finder 18.21.8.230.0000
Infrared Motion Detector for ceiling mounting with Twilight
Presence sensor that allows to detect the presence and movement up to 10 meters.
- Contact configuration: 1 Normally Open
- Nominal current: 10 Amps
- Nominal voltage: 230 VAC
- Nominal Load: 2300 Watts
- Twilight intervention threshold adjustment: from 5 to 350 lux
- Switch off delay adjustment: from 10 seconds to 12 minutes
Detection area
Distance up to 8 meters. 360 ° opening

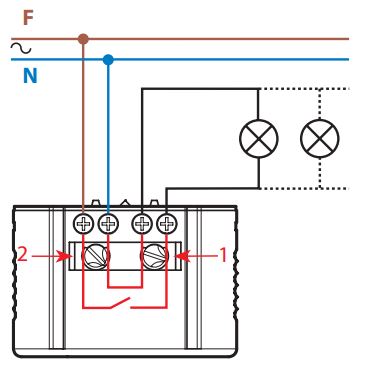

Connection Diagram
1 = twilight intervention threshold adjustment
2 = switch-off delay adjustment
More information is available in the product datasheet and for suggestions for the correct installation of the presence sensor we recommend that you consult the assembly instructions.
Product Codes: 182182300000, 18.21.8.230.0000, 8012823329307
