Finder 18.31.8.230 Indoor Motion Detector False Ceiling Mount
S18IT.pdf
(3.78 MB)
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €73.86 | €90.11 |
| 1 | Promo | €69.25 | €84.48 |
Finder 18.31.8.230 Indoor motion detector for false ceiling mounting
Motion detector suitable for ceiling installation in indoor environments. Equipped with a lens with 360 ° optics capable of homogeneously detecting movement in the coverage area for the automation of the lighting system with absorption up to 10A.

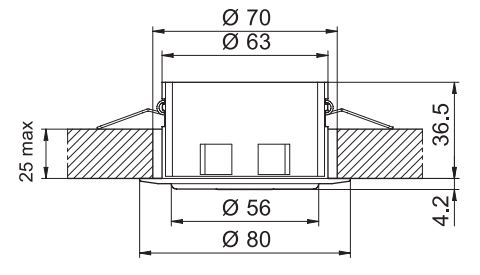

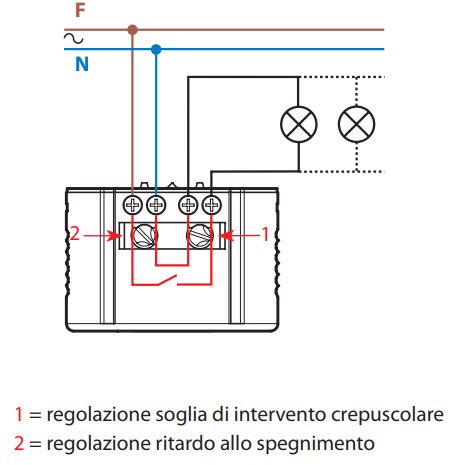

Dimensions, sensor cover and wiring diagram
 |  |  |
Limiting eyelid
The supplied limiting membrane allows to contain the controlled area in order to reduce the number of unwanted detections in the installation area.
The eyelid is applied mechanically even after installation.

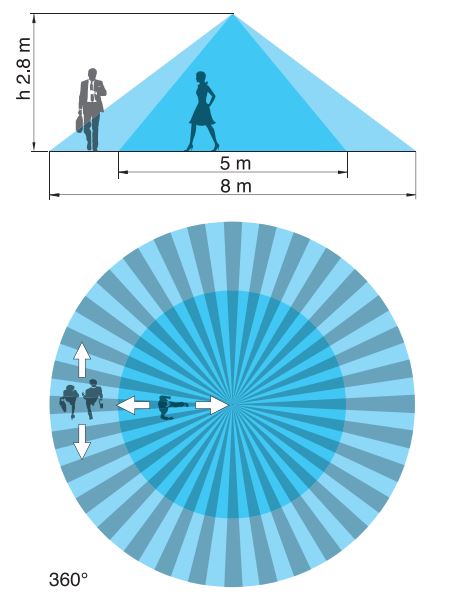

The detection area thus obtained will be approximately 2 meters in case of installation at a typical height of 2.8 meters.
