Weller WT1011H Soldering Station with 200 Watt Soldering Iron
Product Code: 520WT1011H
Inventory Status:
on order
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €649.00 | €791.78 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
The Weller WT1011H soldering system consists of the 150 Watt Weller WT1H power unit and the 200 Watt Weller WP200 soldering iron complete with the Weller WSR201 safety rest.

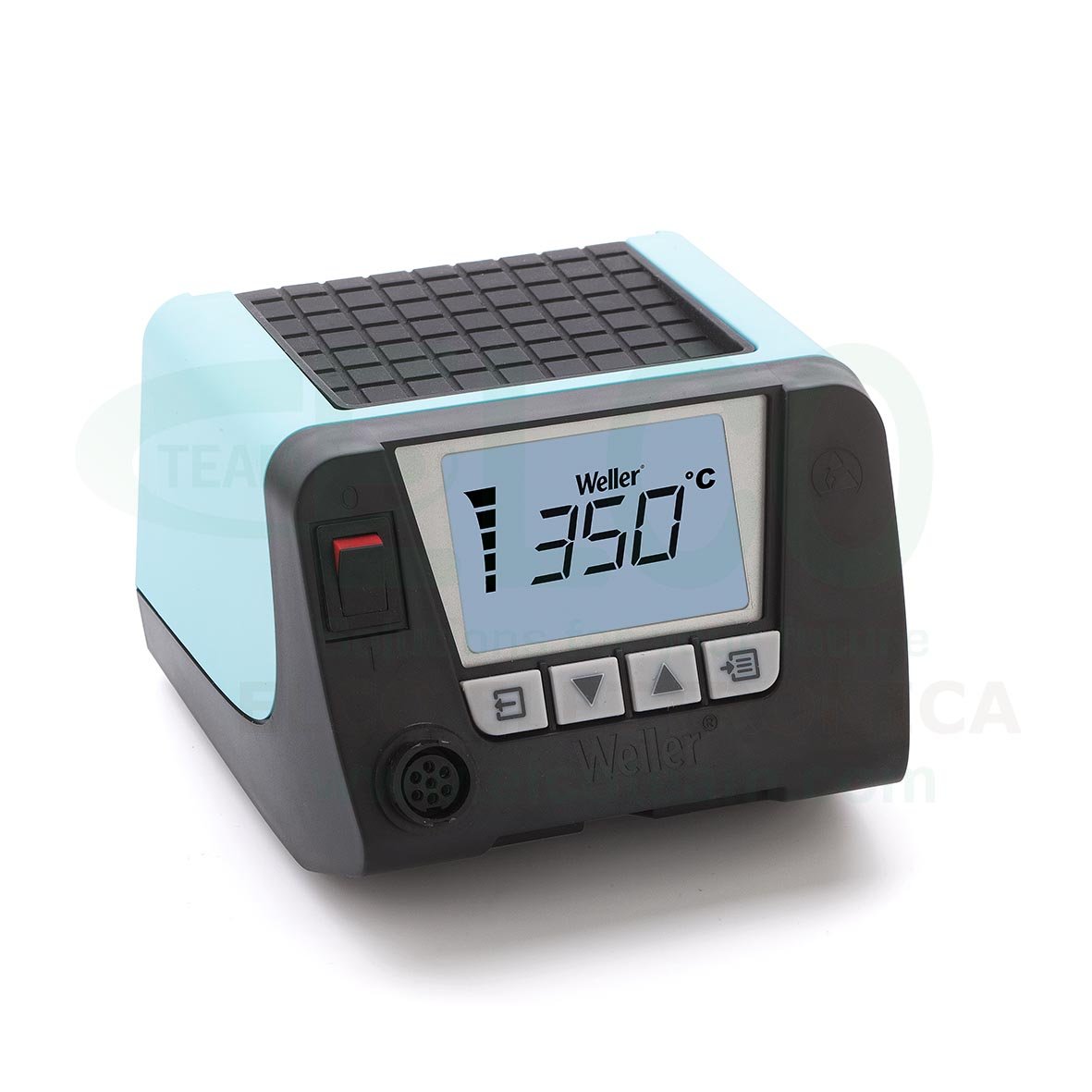

Weller WT 1H Power Supply Unit
The WT1H (Weller Technology Line 1 channel High Power) power supply unit has been designed with ergonomics and versatility in mind. The backlit display provides all the information on the status of use with a graphic bar to display the power output. The front controls are easy to reach and allow direct access to the required functions.
The special design allows you to use the upper area of the unit to place materials (even hot ones) or it can be perfectly adapted to stack multiple units and optimize counter space.
It is compatible with the entire range of WSD and WD series tools and styli (with the exception of the WMP and WMT Micro Tools).
Dimensions 149 x 138 x 101 mm.

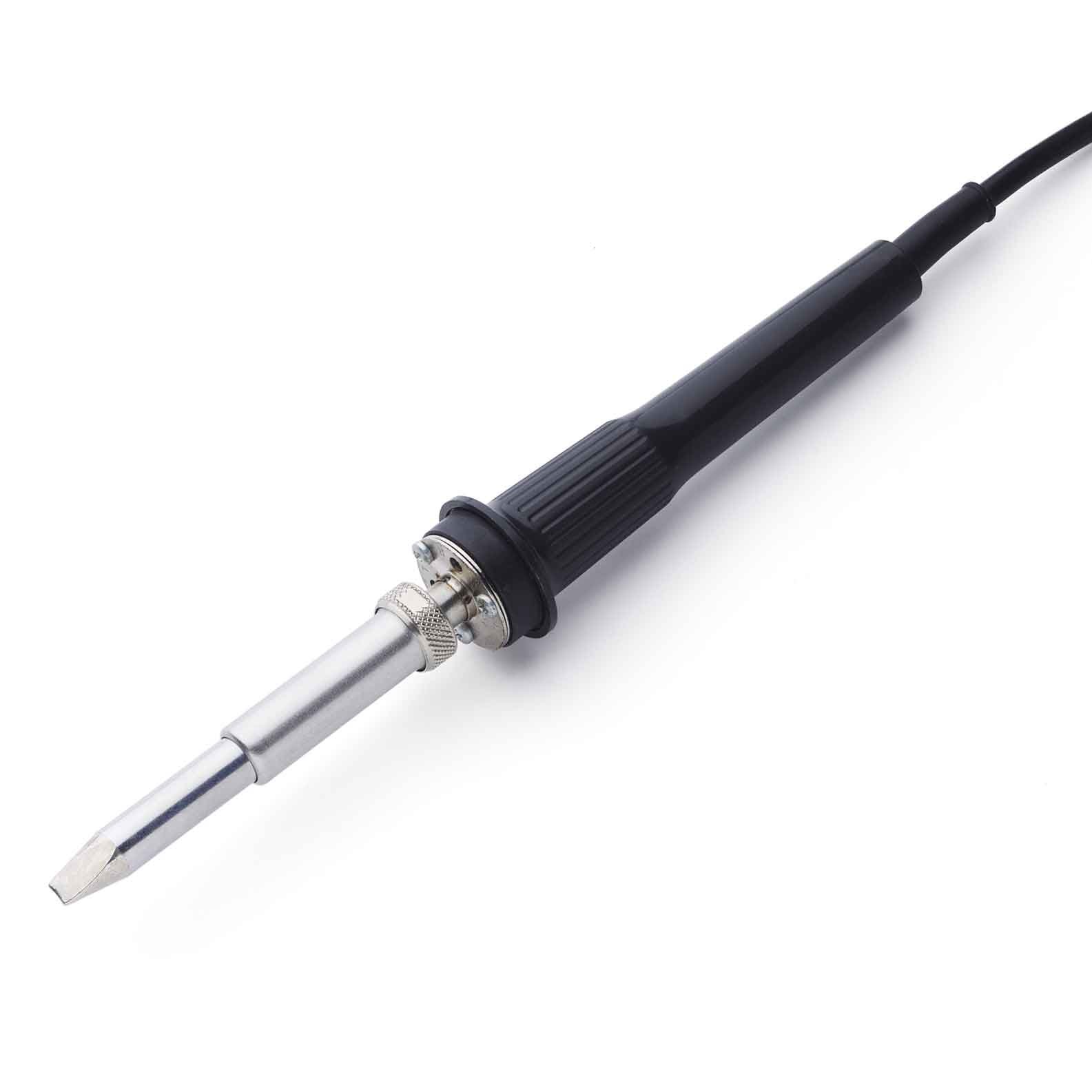

Weller WP200 Soldering Iron Set with WSR201 Stand

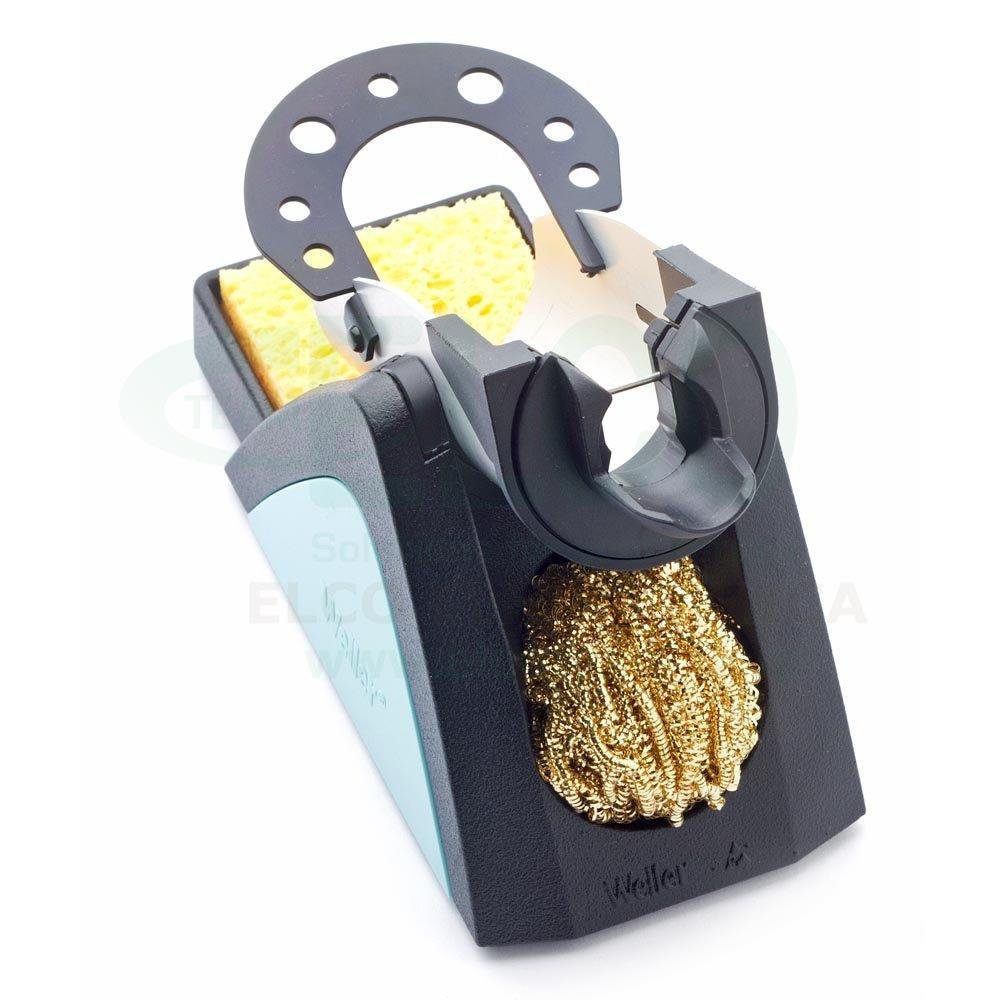

The WT1011H comes with the WP200 soldering iron, which can deliver up to 200 Watts of power. This soldering iron is characterised by excellent versatility and extremely low running costs. The XHT series tips are used. The supplied WSR201 safety stand introduces a new level of ergonomics of use:
- Convertible cleaning system; dry or sponge
- Interchangeable funnel for multiple tool types
- Interchangeable grid holder for tips
- Possibility to join safety supports
The 5mm XHTD screwdriver-cut tip is supplied.
Manufacturer Codes: T0053439699, 0053439699, 053439699, 53439699, WT1011H, WT 1011H
