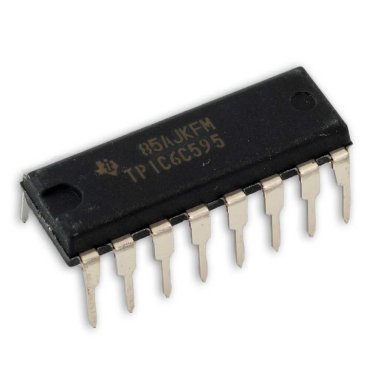

TPIC6C595N Shift Register 8 bit Seriale - Parallela DIP16 Texas Instruments
Art. #: 230TPIC6C595N
Disponibilità:
disponibile
| Quantità | Prezzo | IVA esclusa | IVA inclusa* |
|---|---|---|---|
| 1 | Listino | € 0,903 | € 1,102 |
| 5 | 10% | € 0,8127 | € 0,9915 |
| 25 | 30% | € 0,6321 | € 0,7712 |
| 50 | 35% | € 0,58695 | € 0,71608 |
| 100 | 45% | € 0,49665 | € 0,60591 |
* In fase di conferma d'ordine, i prezzi IVA inclusa verranno arrotondati alla seconda cifra decimale in accordo alla normativa vigente
TPIC6C595 Registro a Scorrimento da seriale a parallela 8 bit
The TPIC6C595 is a monolithic, medium-voltage, low-current power 8-bit shift register designed for use in systems that require relatively moderate load power such as LEDs. The device contains a built-in voltage clamp on the outputs for inductive transient protection. Power driver applications include relays, solenoids, and other low-current or medium-voltage loads.
This device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Data transfers through both the shift and storage registers on the rising edge of the shift register clock (SRCK) and the register clock (RCK), respectively. The device transfers data out the serial output (SER OUT) port on the rising edge of SRCK. The storage register transfers data to the output buffer when shift register clear (CLR\) is high. When CLR\ is low, the input shift register is cleared. When output enable (G\) is held high, all data in the output buffers is held low and all drain outputs are off.
- Funzione Registro a Scorrimento: Da Seriale a Parallela
- Numero di Elementi: 1 Elemento
- N° di Punte per Elemento: 8bit
- Modello Case CI Logico: DIP
- No. di Pin: 16Pin
- Tensione di Alimentazione Min: 4.5V
- Tensione di Alimentazione Max: 5.5V
Maggiori informazioni nel datasheet del componente.
Marca: Texas Instruments - Modello: TPIC6C595N
