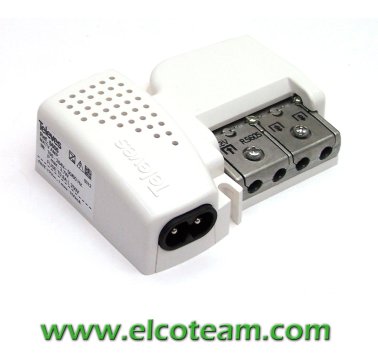

Televes 5605 indoor amplifier with automatic gain
Product Code: 5815605
Inventory Status:
discontinued
Picokom INTELLIGENT split band amplifier (VHF / UHF) with self-adjusting gain. One entrance and two exits
- 1 entry / 2 exit.
- Max remote power supply current (12V): 150mA.
- Low absorption and small size 80x65 (mm).
- EasyF connection with up-and-over locking door.
FEATURES
| Item | 5605 | ||
| Frequency range | MHz | 47-400 | 470-862 |
| I earn | dB | 12 | 20 |
| "Self-adjusting" gain | dB | 20 | |
| Output level (DIN45004B) | dBuV | 105tip | |
| Return loss | dB | 10tip | |
| Noise figure | dB | <5tip. | <4tip. |
| Diet | Vac | 196-264 | |
| Max remote power supply current (12V) | but | 150 | |
| Total absorption max. | Vac | 30mA (2.5W) | |
| Protection index | IP | IP20 | |
| Dimensions | mm | 80x65 | |
