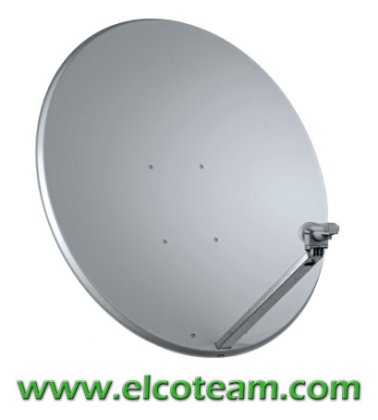

TELE System TM100 aluminum satellite dish
Product Code: 584TN100AL
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €162.00 | €197.64 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
One of the characteristics that make this parabolic antenna excellent is its resistance to wind stress thanks to:
- the elasticity of the plastic support
- to the rectangular LNB arm
FEATURES
- Diameter (mm) 1090x991
- Gain at 10.75 GHz (dB) 39.8
- Gain at 11.75 GHz (dB) 40.5
- Gain at 12.75 GHz (dB) 40.9
- Main lobe angle -3dB at 12.75 GHz (deg) <1.8 °
- Crosspolarization (dB)> 27
- Mast clamp for (mm) 32 - 76
- Elevation angle (deg) 5 ° - 90 °
- Elevation with passing pole (deg) 7 ° - 47 °
- F / D ratio 0.55
- Offset angle (deg) 25 °
- Wind load at 72 Km / h (Kg) 30
- Wind load at 144 Km / h (Kg) 119
- Wind load at 216 Km / h (Kg) 268
- Arm diameter (mm) 23/40
- Materials available for the reflector steel, aluminum
- Plastic back support
- AZ / EL holder in galvanized steel
- LNB arm (48x22mm) in aluminum
- LNB holder in plastic
