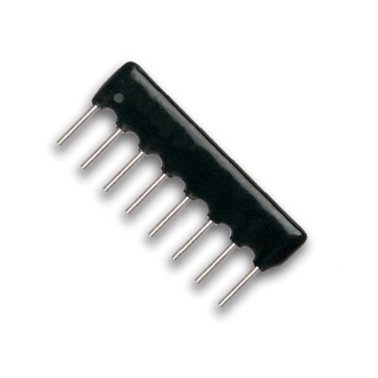

Resistive network 4x4.7 KOhm 2% SIL (4 isolated elements) SIL8
Product Code: 103RN8B4K7
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €0.38661 | €0.471664 |
| 1 | Promo | €0.36728 | €0.448082 |
| 25 | 10% | €0.33055 | €0.403271 |
| 50 | 20% | €0.29382 | €0.35846 |
| 100 | 30% | €0.2571 | €0.313662 |
| 200 | 50% | €0.18364 | €0.224041 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Resistive network 4 x 4,7 KOhm (4 isolated elements)
Technical specifications
- Resistor values: 4.7 KOhms
- Tolerance: 2%
- Number of resistors: 4
- Circuit type: N isolated elements
- Number of pins: 8
- Case: SIP-8
- Pitch: 2.54mm
- Power per element: 200mW (1/5W)
- Rated voltage: 100V
- Overload voltage: 150V
Dimensions and Diagamma
 |  |
Component Code: 101RGLD4Y472G, RGLD4Y472G
