Marca: Altro

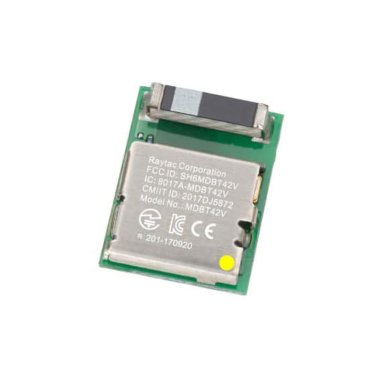

Raytac MDBT42V-512KV2 Nordic nRF52832 BT5 Bluetooth Antenna Module Pre-Certified BQB/FCC/IC/CE/Telec/SRRC/NCC

Art. #: 230MDBT42V-512KV2

Disponibilità: in arrivo
Quantità Prezzo IVA esclusa IVA inclusa*
1 Listino € 12,30 € 15,01
1 Promo € 11,07 € 13,51
5 10% € 9,963 € 12,155
10 20% € 8,856 € 10,804
25 30% € 7,749 € 9,454
* In fase di conferma d'ordine, i prezzi IVA inclusa verranno arrotondati alla seconda cifra decimale in accordo alla normativa vigente

Raytac nRF52832 module spectrum covers MDBT42Q, MDBT42 and MDBT42V series with both Chip Antenna and PCB Antenna option for selection.

Raytac's MDBT42V & MDBT42V-P is a BT5.1 & BT5 & BT4.2 stack (Bluetooth low energy or BLE) module designed based on Nordic nRF52832 SoC solution, which incorporates: GPIO, SPI, UART, I2C, I2S, PWM, ADC and NFC interfaces for connecting peripherals and sensors.

Quick Specifications

  • 32-bit ARM® Cortex™ M4F CPU
  • Supply: 1.7V – 3.6V
  • Memory: 512kB Flash Memory
  • RAM: 64kB
  • Tx Power: +4 dBm @ 7.5mA, 0 dBm @ 5.3mA
  • Rx Sensitivity: -96 dBm @ 5.4mA
  • Flexible and configurable 32 GPIO (8 analog inputs)
  • Interfaces: UART / I2C / SPI / PWM / PDM / I2S / NFC
  • 3 x Hardware SPI master ; 3 x Hardware SPI slave‧2 x two-wire master ; 2 x two-wire slave
    • 1 x UART (CTS / RTS)
    • PDM for digital microphone
    • I2S for audio
  • 12-bit / 200KSPS ADC
  • 128-bit AES ECB / CCM / AAR co-processor
  • Low cost external crystal 32MHz ± 40ppm for Bluetooth ; ± 50ppm for ANT Plus
  • Low power 32MHz crystal and RC oscillators
  • Operating Temp: -40°C to +85°C
