Weller PTR8 long conical tip Ø 0.4 mm 425°C for TCP TCPS FE50M – 4PTR8-1

SKU: 520PTR8
Discontinued
Brand: Weller
Series - Family:
PT series
oro.product.punte_saldatura_compa.label:
TCP
oro.product.punte_saldatura_dimen.label:
1.6
Tip shape:
Screwdriver

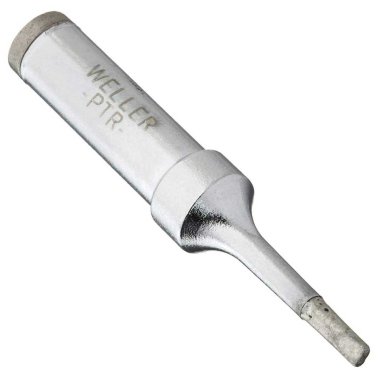

Weller PTR8 long conical tip Ø 0.4 mm 425°C for TCP and TCPS soldering irons

The Weller PTR8, also known as the PT R8 and PT-R8, is a professional soldering tip from the PT series featuring a long conical geometry and a slim 0.4 mm diameter tip. Designed for Weller soldering irons with the Magnastat system, it operates at a nominal temperature of 425°C and is particularly suitable for precision work on electronic components and small soldering points.

The long, slim shape of the PT R8 facilitates access to hard-to-reach areas and allows for precise control of the heat application point. The 8-heat rating identifies the 425°C Magnastat version.

Technical features

Characteristic Value
Brand Weller
Model PTR8 / PT R8
Series PT
Product type Magnastat soldering tip
Form Long conical / long round
Tip diameter Ø 0.4 mm
Nominal temperature 425°C
System Weller Magnastat
Compatibility Weller TCP/TCPS soldering irons compatible with PT tips
Power Reference Styles 50 W
Packaging 1 piece

Long conical tip Ø 0.4 mm

With a tip diameter of just 0.4 mm, the Weller PTR8 is one of the most suitable PT geometries for precision work. The elongated, conical profile allows heat to be concentrated on a small surface area and allows for the soldering of closely spaced components.

This geometry is particularly useful in electronic maintenance, in the repair of printed circuit boards and in working on small terminals and connections.

Weller Magnastat system at 425°C

The PTR8 belongs to the Weller PT tip family for Magnastat soldering irons. In this system, the operating temperature is directly determined by the thermal class of the tip installed.

The number 8 identifies a nominal temperature of 425°C. Compared to the corresponding Class 7 tips at 370°C, the PTR8 therefore offers a higher operating temperature for applications that require greater thermal energy.

Compatibility with Weller TCP soldering irons

The Weller PT R8 is designed for use with Weller Magnastat soldering irons compatible with the PT series of tips, including the TCP and TCPS systems. Before replacing, it is advisable to check the compatibility of your specific soldering iron version with the PT series.

Applications

  • Precision electronic welding
  • Printed circuit board assembly and repair
  • Small electronic components
  • Small terminals and pitches
  • Hard-to-reach welding points
  • Electronic wiring
  • Maintenance and repair of electronic equipment
  • Use with Weller Magnastat soldering irons
  • Applications rated at 425°C

Advantages of the Weller PTR8

  • Original Weller PT series tip
  • Long conic geometry
  • Thin terminal Ø 0.4 mm
  • High precision at the welding point
  • Rated temperature of 425°C
  • Weller Magnastat System
  • Suitable for small components and terminals
  • Long profile to reach less accessible points
  • Suitable for professional soldering and electronic maintenance

Product codes: PTR8, PT R8, PT-R8, 4PTR8-1, 4PTR8, 5 41 298 99, T0054129899, 0054129899, 054129899, 54129899, 520PTR8.
