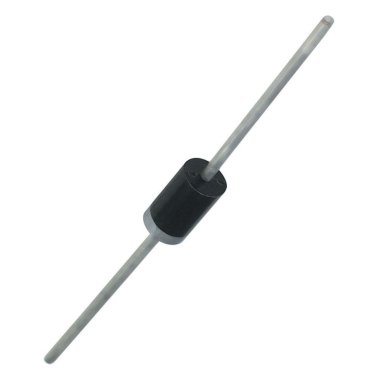

P6KE100CA transil diode TVS 600W 100V Bidirectional
Product Code: 140P6KE100CA
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €0.55223 | €0.673721 |
| 1 | Promo | €0.4694 | €0.572668 |
| 10 | 20% | €0.37552 | €0.458134 |
| 50 | 30% | €0.32858 | €0.400868 |
| 100 | 40% | €0.28164 | €0.343601 |
| 500 | 60% | €0.18776 | €0.229067 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
DiodeTransil Bidirectional P6KE100CA
Transil BZW04 Series Surge Suppressor Diode provides surge protection through a clamping action. The instant response to transient surges makes it particularly suitable for protecting voltage sensitive devices such as MOS technologies and low voltage powered integrated circuits.
- Peak pulse power 600W at 10 / 1000µs
- Quick response time
- Low locking factor
Applications
Power Management, Industrial
Technical features
- Diode type: transil
- Power dissipated: 600W
- Max inverted voltage: 95V
- Breakdown voltage: 105V
- Pulse current max. 4.4A
- Structure of the bidirectional semiconductor
- Tolerance ± 5%
- DO204AC body
- THT assembly
- Leakage current 1µA
