Motor Drive Analyzer Fluke MDA-510 4 channels 500 MHz for the verification of Inverter and Motor Drives
Product Code: 560MDA510

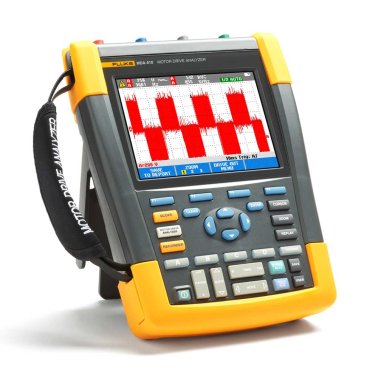

Fluke MDA510 Motor Drive Analyzer Oscilloscope
Simplify motor inverter troubleshooting with guided tests and automated measurements
The Fluke MDA 510 Motor Drive Analyzers saves time by eliminating the need for particularly complex or complicated set-ups, simplifying and speeding up the troubleshooting process. Just select the desired type of test and the measurement procedures, guided step by step, will show where to make the connections for the voltage and current measurement, while the pre-set profiles in the instrument will capture all the necessary data for each section of the motor inverter (from input to output), the DC current of the buses and of the motor itself. The analyzers will ensure you take measurements from the simplest to the most advanced with a built-in report generator that will output test reports with ease.
Ultimately it is the ideal portable test tool to identify and safely solve the typical problems of motor inverter systems.
Main features
- It measures the inverter output voltage, the DC bus voltage and ripple voltage, harmonics and unbalances
- 3 tools in one: motor inverter analyzer, waveform analyzer and data logger
- 4 input channels for voltage and current signals
- Measurement of voltage, current, DC bus voltage level and AC ripple, voltage and current unbalance and voltage modulation
- Performs guided measurements on motor inverter, DC bus, inverter output, motor input with graphical diagrams, step by step on voltage and current.
- Use simplified measurement set-ups with pre-set profiles to automatically collect trigger data based on your choice of test procedure.
- Create reports quickly and easily to document troubleshooting and collaborate with other technicians.
- Measure additional electrical parameters with a complete 500 MHz oscilloscope, with multimeter function and recording capability to complete the range of electrical and electronic measurements on industrial systems.
- Includes USB A, and mini USB B connection ports
More information and insights in the product datasheet.
Included in the supply
1 lithium-ion battery pack BP 291, 1 power / charging adapter BC 190, 3 high voltage probes VPS 100: 1 with clamps, 1 voltage probe VPS410-II-R 10: 1 of 500 MHz, 1 clamp meter ca i400s, 1 x C1740 carrying case, 1 x 2GB USB drive with FlukeView ™ 2 manuals and software
Product codes: Fluke-MDA-510, 4984691, 0095969870962
