Manual thermostat Finder Anthracite

Easy to use manual wall thermostat. It allows you to quickly set the desired temperature with an interval between 5 ° C and 30 ° C. Ability to set the summer / winter function (depending on the type of system connected, heating or air conditioning) and the day / night function which allows you to automatically lower the room temperature by 3 ° C compared to that set on the knob.

CHARACTERISTICS FINDER 1T41AN ANTHRACITE GRAY

• Finder Code: 1T.41.9.003.2000
• Heating temperature (+5 ... + 30) ° C
• Cooling temperature (+8 ... + 30) ° C
• Powered by 2x1.5V AAA battery
• Functions: Antifreeze / Off / Summer / Winter
• Day / Night selector (reduction of - 3 ° C ref. To the DPR93 412.99 art.7 standard)
• 1 output contact 5A 250 V AC
• Mechanical locking of the knob on desired temperature values

DIMENSIONS AND DIMENSIONS

	Front dimensions in millimeters

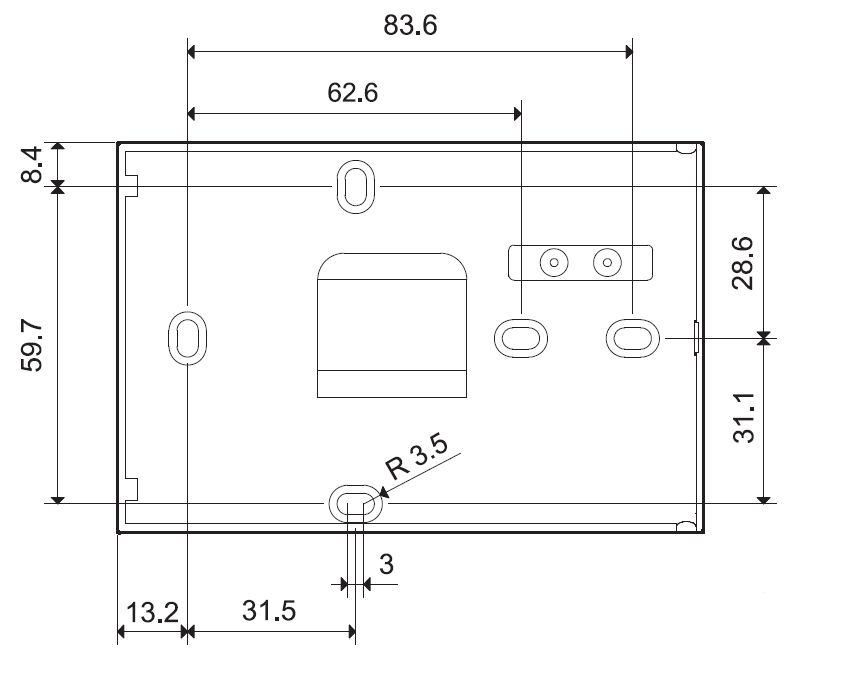

	Rear dimensions in millimeters

SPECIFICATIONS

• Supply voltage 3 V DC (2 batteries 1.5 V DC AAA)
• Contact configuration 1 exchange
• Rated current 5 A 250 V AC
• Adjustment range (+5 ... + 30) ° C
• Thermal differential 0.3 ° C
• Temperature resolution 0.5 ° C
• Degree of protection IP20
• RED LED with icon (flame) indicates heating (on in pulsating mode = boiler ON)
• BLUE LED with icon (fan) indicates cooling (switched on in button mode = air conditioner ON)
