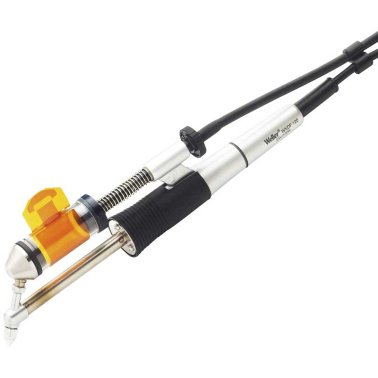

Weller WXDP120 Robust 120 Watt Desoldering Iron - T0051320699N
Product Code: 520WXDP120ROBUST
Inventory Status:
in stock
Quantity | Price | VAT excluded | VAT included |
---|---|---|---|
1 | Default | €352.00 | €429.44 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Weller WXDP120 Robust Desoldering Stylus 120 Watt 24V for WXD and WXR Series Station
With this new 120 Watt Reinforced Desoldering Stylus, the WX Family is enriched by becoming a state-of-the-art Desoldering Station. The increased power and the new XDS Series Nozzles reduce the maintenance required to a minimum and avoid clogging of the instrument. In addition, the 120 Watts allow to reduce heating and working times by improving performance on complex printed circuits with significant thermal discharges.
The main features are:
Safety:
The press fit of the pond tank can be changed quickly and easily, without the risk of burns to operators' fingers.
Cost savings:
A movement sensor in the handle recognizes when the instrument is at rest and lowers its temperature to a threshold that can be set by the user. When the tool is lifted, the movement sensor signals the start of heating and brings the tool up to temperature, thus avoiding waste of energy and wear of the heating resistor and the nozzles.
Even faster heating
The instrument reaches the operating temperature in 35 sec. The same goes from the rest temperature to the operative one in just 20 sec. (150 ° C-350 ° C)
Less cleaning of the head
The length of the tail of the XDS Series nozzle allows the flow of the solder removed directly into the glass tank. this avoids the formation of residues on the head and limits the need for cleaning.
Technical data:
- Temperature range: 50 - 450 ° C
- Power: 120W
- Warm-up time: 35 sec. (50 - 380 ° C)
- Type of Nozzles: XDS and XDSL
- Supply unit: Weller WXD and WXR
Product codes: WXDP120 Robust, WXDP 120 Robust, T0051320699N, 4003019435517, B0886PDV2G
