Brand: Trend Networks

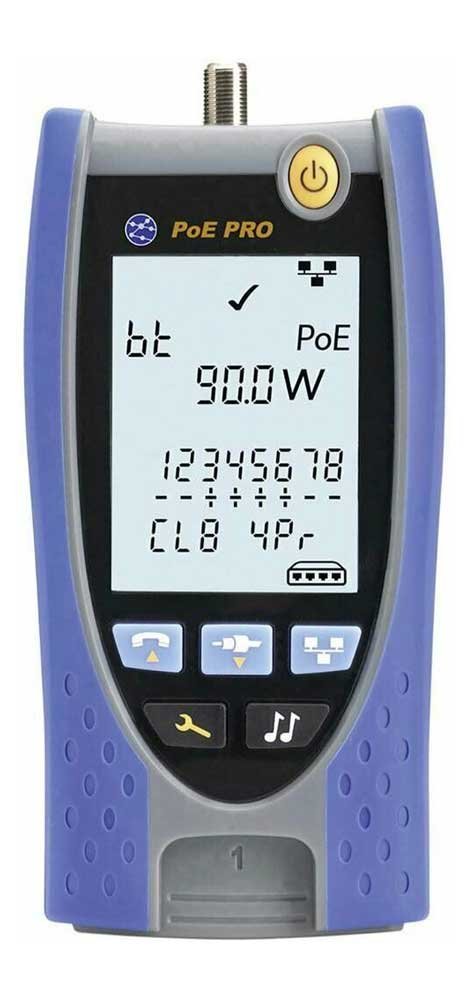

Trend Networks VDV II PRO PoE Network Cable Verifier R158004

Product Code: 560VDV-II-PRO-POE

Inventory Status: discontinued

The PoE Verifier Pro helps you avoid trial and error when installing, maintaining, and troubleshooting networks where PoE is implemented. Before, engineers had to know all the various standards, device power outputs, and cable lengths to be sure a device was working properly. PoE Pro identifies the class of PoE source and power available to a PoE device, regardless of cable length, cable quality, or other factors.

Identify cable faults, avoiding trial and error
PoE Detection: Identifies the IEEE standard, class, type, maximum power and available voltage
Provides clear Pass / Fail result to IEEE 802.3af / at / bt standards
Identifies analogue (PBX) and digital (ISDN) telephone services
Displays the network speed and duplex information
It detects high voltages and provides visual and audible warning to avoid damage to the tester
Compatible with most non-standard PoE injectors
Power Extension Test: By pressing the network button for 3 seconds, PoE Pro increases the power demand up to a maximum of 90 watts

Main Features

Checking the Wiring

It supports RJ45, RJ11 / 12 and coaxial connections
Wire map for wiring errors, split pairs, shorts and open circuits
Check cable shielding
Cable length
Distance to open / short circuit (TDR)

Cable Tracking

Analog and digital tone generator
Compatible with common cable tracing probes

Active Networks Test

Flashing of the Door
Multimedia service detection - Ethernet, analog / digital and ISDN telephone service
10/100/1000 Mb / s Ethernet Speed Detection

Other Features

Instant Results: The results are shown as soon as the cable is connected
Larger 2.9 "screen
Backlight
Overvoltage Protection

PoE test

PoE validation to ensure proper device and network operation
802.3bt High Power PoE support (up to 90 watts)
Compatible with most non-standard PoE injectors
Identify the type of PSE (af / at / bt)
Identifies the PSE class from 0 to 8
Determines the maximum available power (watts) at the location of the device
View the voltage
Shows how many pairs are using PoE

Kit contents

PoE Pro - Data Cable and PoE Verifier. Includes 1 tester, 1 dual port remote unit, 1 coaxial remote unit, 1 alkaline battery, 1 multi-language user guide, 2 x 390mm RJ45 crocodile clip cables, 2 x 150mm RJ45 to RJ45 shielded cables, 2 x RJ12 to RJ12 cables. 100mm, 1 x 230mm F plug to F plug cable, 1 F-81 connector, 1 BNC female to F male adapter, 1 BNC female to F female adapter, 1 RCA female to F male adapter, 1 RCA female to F female adapter , 1 x pocket card with wiring diagrams, 1 x carrying bag.

Product Codes: VDV II PRO POE, R158004, PoE Pro

Brand: Ideal Networks, Trend Networks
