Testo 745 Non-contact voltage detector
Product Code: 560T745
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €35.00 | €42.70 |

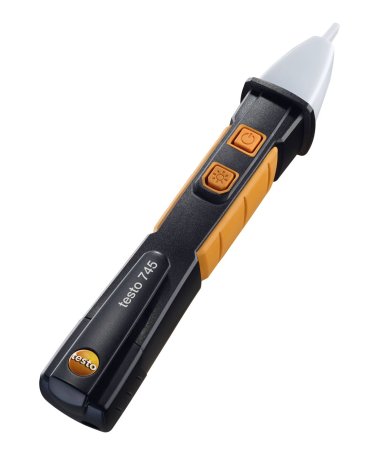

Testo 745 Non-contact voltage detector
The contactless Testo 745 phase detector allows you to quickly and easily determine the presence or absence of voltage. Compared to all other models on the market it is equipped with a high frequency interference filter. When voltage is detected, the instrument emits an acoustic and visual signal.
During the first step the phase detector performs the phase detection and during the second it indicates the voltage.
The integrated flashlight facilitates work in dark places, and the Testo 745 is water and dust resistant according to IP 67.
General technical data | |
Dimensions | 155 x 25 x 23 mm |
Working temperature | -10 to +50 ° C |
Protection class | IP67 |
Warranty | 2 years |
Storage temperature | -15 to +60 ° C |
Weight | 63 g |
Overvoltage Category | CAT IV 600V; CAT III 1000V |
Authorizations | CSA; THERE IS |
AC voltage | |
Measurement range / Resolution | 12 to 1000 V / 50 to 1000 (sensitivity 1), 1000/12 V (sensitivity 2) |
Instrument Measurement Functions | |
Measuring point illumination | Yes |
