Testo 300 kit 2 Combustion Analyzer (O2, CO up to 8,000 ppm, NO can be subsequently integrated) 0564 3002 73
Product Code: 560T300-KIT2
Inventory Status:
on order
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €1,579.00 | €1,926.38 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Combustion Analyzer Testo 300 Kit 2
- Quick and easy use: Intuitive measurement menus and quick response Smart-Touch operation
- With O2 sensor and CO-H2 sensor up to 8,000 ppm
- Large 5-inch HD display to always have all measured values under control
- Included in the kit: testo 300 flue gas analyzer with O2 sensor, H2 compensated CO sensor up to 8,000 ppm, power supply, basic flue gas probe, spare filters, Bluetooth® printer, EasyHeat software, instrument bag
With this kit you will always be ready to face the main measurements on heating systems: the combustion analyzer approved by TÜV testo 300 is supplied with O2 sensor and CO-H2 sensor up to 8,000 ppm (NO can be integrated later), compact gas probe combustible, testo Bluetooth printer, instrument bag and other practical accessories.
Testo 300 - Flue gas analyzer (O2, CO H2 compensated up to 8,000 ppm)
Code 0633 3002 71
- O2 sensor and H2 compensated CO sensor up to 8,000 ppm
- Longer sensor life thanks to automatic sensor protection
- TÜV approval according to 1st BImSchV and EN 50379, part 1-3
- Fine pressure measurement
- Wide range of probes that can be replaced in the blink of an eye: you will be surprised by the ease with which the probes are replaced and by the multifunction handle for connecting different probe tubes (each can be ordered separately), eg. longer probe tubes for larger diameter flue gas lines or flexible probes for hard to reach places
- Optional probes and accessories for other measures such as eg. measurement of the pressure of the moving gas, leak tests, measurement of the differential temperature, measurement of the ambient CO
Compact probe for smoke analyzers - length 180 mm, Ø 6 mm, Tmax. 500 ° C
Order No. 0600 9740
- A single tube that can be connected to the instrument via a sturdy bayonet connection for flue gas and flue gas temperatures
- The filter integrated in the handle, replaceable, protects the instrument and sensors.
Replacement filter pack for compact smoke sampling probes (10 pieces)
Order No. 0554 0040
- Spare particle filter for compact flue gas probe
- Quantity: 10 pieces
Bluetooth® / IRDA printer
Order No. 0554 0621
- Printer with Bluetooth® and IRDA interface for compatible Testo instruments
- Print measured values and graphs
Replacement thermal paper for printer
Order No. 0554 0568
- Permanent thermal paper
- 6 rolls

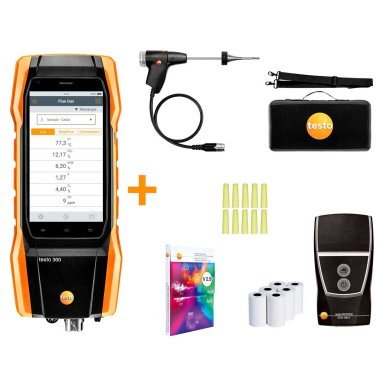

Scope of supply
- Testo 300 flue gas analyzer with O2 sensor and CO-H2 sensor up to 8,000 ppm, NO sensor can be retrofitted
- USB power supply with cable (0554 1106)
- Compact flue gas probe, 160 mm, Ø 6 mm, Tmax. 500 ° C; 1,5 m hose, filter and fixing cone (0600 9740)
- Spare filter for compact probe, 10 units (0554 0040)
- BLUETOOTH printer with 1 roll of thermal paper and rechargeable battery (0554 0621)
- Spare thermal paper for printer, valid for official documents (0554 0568)
- Free Download EasyHeat PC Software (0554 3332)
- Instrument bag (0516 3001)
