Mitan S5I02 Professional remote control repeater by wire expandable with USB power supply
Product Code: 584S5I02
Inventory Status:
out of stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €53.00 | €64.66 |
| 1 | Promo | €37.10 | €45.262 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Mitan S5I02 Professional remote control repeater by wire expandable with USB power supply
This remote control repetition system allows you to receive the signal transmitted by the original remote control and retransmit it through another probe connected to it.

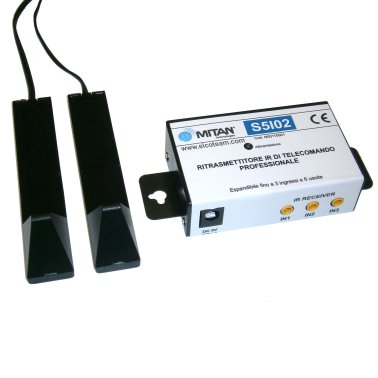

S5I2 consists of the distribution block powered at 5V via the supplied 230V-USB adapter and a transmitter and receiver probe to be connected to the block itself. The device can be connected to max. 3 receiving probes max. 6 transmitting probes with cable up to 10 meters long. The package includes a transmitting probe and a receiving probe with a cable about 1.5 meters long.
On the distributor block there is a LED that indicates the operating status: steady when it is correctly powered with no IR signal in and flashing when receiving IR signal from the remote control.
S5I2 consists of the distribution block powered at 5V via the supplied 230V-USB adapter and a transmitter and receiver probe to be connected to the block itself. The device can be connected to max. 3 receiving probes max. 6 transmitting probes with cable up to 10 meters long. The package includes a transmitting probe and a receiving probe with a cable about 1.5 meters long.
On the distributor block there is a LED that indicates the operating status: steady when it is correctly powered with no IR signal in and flashing when receiving IR signal from the remote control.
Specifications:
- Receiving IR probes: 1 supplied (+2 optional)
- Transmitting IR probes: 1 supplied (+5 optional)
- Receiving frequency: 34kHz - 60kHz
- Transmission frequency: 38kHz
- Reception distance:> 8mt
- Transmission distance:> 10cm
- Power supply: 5VDC - 100mA
- Jack size: 3.5mm
- Receiver weight: 17g
- Transmitter weight: 23g
