Chauvin Arnoux CA 8336 Qualistar + Power Quality Analyzer with MiniFlex clamps
Product Code: 560CA8336MA
Inventory Status:
on order
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €4,147.00 | €5,059.34 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
Chauvin Arnoux CA 8336 Qualistar + Power Quality Analyzer with MiniFlex clamps
Equipped with a color graphic TFT display (320 x 240), the Qualistar + CA 8336 allows you to quickly and easily obtain the situation of the main characteristics of the electrical network. Handy and compact, the CA 8336 displays the waveforms of the 5 voltage inputs and 4 current inputs in real time.
As soon as the current sensors are connected to the instrument, they are automatically recognized (Plug & Play system): it is thus possible to connect different types of sensors simultaneously and set the configuration of the reports obtaining a direct reading of the measurements.
The ease of use of the Qualistar + adapts to field applications: the multiple functionalities make the Qualistar + CA 8336 polyvalent and suitable for safety applications up to 1.000V Cat.III, and 600V Cat.IV
The experience of the Qualistar CA8336, Guaranteed Performances:
- 5 voltage inputs and 4 current inputs
- Inrush mode on 10 minutes
- Calculation of deforming power
- Real-time display of waveforms, harmonics, power and recordings.
- Recording of events and alarms
- Recording of the trend of different parameters.
- Transient (7 μs) and flicker modes
- It measures all the voltage, current and useful power parameters up to the complete diagnostics of an electrical system
- All the power balances necessary for the development of an energy efficiency diagnostic
- Simultaneously capture and record all parameters, transients, alarms and waveforms
- A consolidated simplicity of use
- Compliant with 600V CAT IV and 1000V CAT III
Handy and suitable for any use
Intended for the control and maintenance services of industrial or administrative buildings, the Qualistars allow to obtain an instant image of the main qualitative characteristics of the electricity network. Handy and precise, these devices also offer numerous calculated values and various treatment functions.
Main features
- AC + DC TRMS voltage and current, frequency
- Powers: W, VA, var, DF, THD, cos φ, tan φ
- Energies: Wh, varh, VAh, VADh,, BTU, TEP, toe, Joule
- Harmonics: from grade 0 to grade 50, phase
- Transients: up to 210
- Flicker (Pst and Plt)
- Recording of a selection of parameters on a sampling: from 2 weeks to several years
- Alarms: up to 10,000 of 40 different types
- Peak detection
- Vector representation
- Degree of protection IP53 / IK08
- Communication interface: USB
- Dimensions and Weight: 240 x 180 x 55 mm - 1.9 Kg.

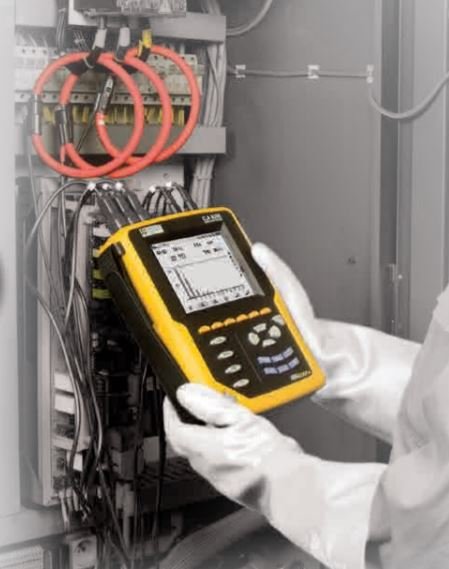

Variety of Links

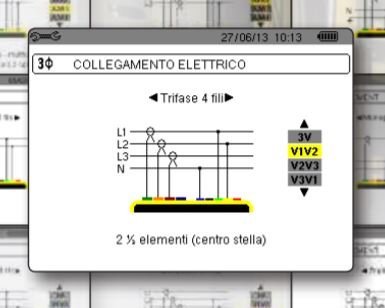

The Qualistars are suitable for applications on any type of electrical network, from the simplest to the most complex: single-phase, two-phase, three-phase with or without neutral, any type of electrical system 2, 3, 4 and 5 wires, 2 wattmeters method, ARON , 2 ½ elements etc.
Short or long term flicker
The flicker, or flicker of light (term adopted by the IEC / EN standard), characterizes voltage variations, which cause, for example, fluctuations in lighting.

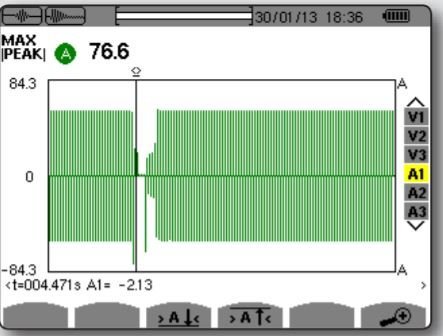

Longer inrush .. over 10 minutes!
The Inrush (or call current) corresponds to the maximum input current absorbed by an electrical device when it is energized. This measure allows the correct sizing of the electrical system.
The ease of use of the Qualistar + adapts to field applications. The multiple functions make the Qualistar + CA 8336 polyvalent and suitable for safety applications up to 1.000V Cat.III, and 600V Cat.IV. The measurements are carried out with the aid of two software: PAT and Dataview® as an option
Supplied with the kit
- Kit of 5 cables 3 meters for voltage connections
- Kit of 5 crocodile clips
- Kit 4 MiniFlex MA193 sensors (from 100mA to 10.000A) length 250mm - (diameter measuring 70mm)
- Set of 12 colored identification rings
- Screen anti-scratch protection film
- Data Acquisition Software (PAT)
- USB connection cable
- 4000mAh NiMH battery + mains adapter
- 2Gb SD Card
- Transport bag for accessories and equipment
- Verification certificate
- Instructions for use on CD in 5 languages
