0-10 Volt to PWM converter
Product Code: 8630-10-PWM
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €11.20 | €13.664 |
| 1 | Promo | €10.08 | €12.2976 |
| 5 | 10% | €9.072 | €11.06784 |
| 10 | 20% | €8.064 | €9.83808 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation

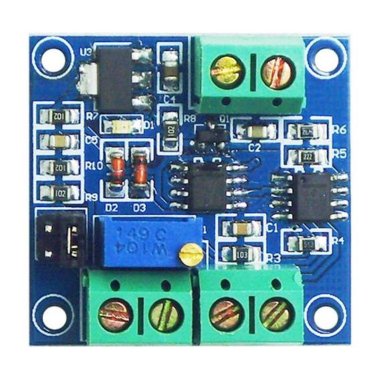

0-5V / 0-10V to PWM Adjustable Voltage Conversion Module with 0-100% Duty Cycle
Features
- Easy to use, the potentiometer adjustment allows fine tuning of the converter
- The jumper jumpers allow you to choose two input voltage ranges
- Small size, easy to carry and apply
- Working voltage: 7-12V.DC
- Conversion range: 0-5V / 0-10V into 0-100% PWM
- Tolerance: 1% -3%
- Working temperature: -25 ~ 85 ℃
- Frequency: 50KHz
Connections
- VCC: Positive Power 7-12V
- GND: power supply ground
- VIN: 0-10V input voltage
- GND: ground of the input voltage
- GND: ground PWM output
- PWM: PWM output
Operating Instructions
- Connect the operating voltage with VCC and GND. Attention: they cannot be connected in reverse
- Connect the VIN control signal and select the voltage range (0-5V or 0-10V)
- Connect the PWM signal output
- The VIN voltage will proportionally adjust the Duty Cycle of the output PWM signal
- The potentiometer allows you to fine-tune the accuracy
