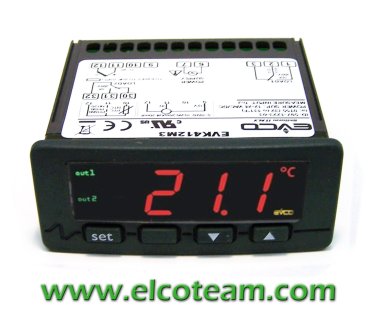

EVCO EVK412M3 12 / 24V AC / DC two-point multi-probe thermoregulator

The Evco EVK412M3 is a two-point digital thermoregulator with multi-probe input. It can be connected to PTC / NTC probes, J / K thermocouples, Pt100, Pt 1000 and Ni 120 2/3 wire probes, 0-20 / 4-20 mA and 0-10 / 2-10 V transducers (universal measurement input ). The setting of the type of probe used is carried out directly from the instrument menu, without particular difficulties. A configuration parameter allows you to program the instrument to operate with one of the following functions:

• an independent and a relative intervention point
• two independent intervention points
• neutral zone
• two steps.

A communication port (available on request) allows you to connect the instrument to the supervision systems (via TTL, with MODBUS communication protocol) or to the EVKEY programming key.
Evco EVK412M3 is available in the 75 x 33.5 mm (W x H) size and is designed for panel installation.

Power supply 12 - 24 VAC / DC

SPECIFICATIONS

(see Attachment)
