Marca:
Dahua
DH-PFM9..eet.pdf
(1.23 MB)
Dahua PFM900-E Tester per verifica installazioni Telecamere TVCC IP, HDCVI/AHD/TVI/CVBS
Art. #: 560PFM900-E
Disponibilità:
Prodotto obsoleto – Fuori produzione

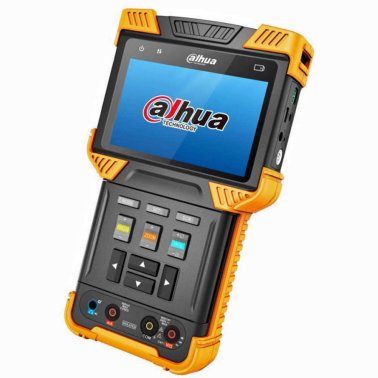

Dahua PFM900-E Tester Telecamere TVCC
Dahua DH-PFM900-E è un tester per la verifica del corretto montaggio e installazione che supporta test di telecamere di rete e telecamere analogiche.Funzioni come i test di cavi e di rete rendono il tester adattabile a scenari di debug più complessi. La potente compatibilità di DH-PFM900-E soddisfa la maggior parte delle attuali esigenze di sicurezza.
- Schermo TFT da 4,0 pollici, risoluzione 800 × 480
- Dcodifica H.264/H.265 per IPC
- Controllo video HDCVI/AHD/TVI/CVBS
- Supporta SD e HD
- Alimentazione 12V/2A CC per le telecamere
- Supporta il controllo RS–485 e il test audio
- Prove di lunghezza e attenuazione del cavo di rete
- Funzioni del multimetro digitale
Sistema
- Operation System: Linux
- Language: Multi-language interface: English, Chinese, Spanish, French, German, Turkish, Russian, Czech, Serbian, Portuguese, Polish, Romanian, Hebrew, Japanese, and Persian
- Operation Mode: Button and keyboard
- Auto Standby/Shutdown: Yes
- Keyboard Sound: Enable/Disable
- Screen: 4.0" TFT screen, 800 × 480 resolution
- Keyboard: Controlling keyboard: 13 keys of the main keyboard, and 45 keys of the flip keyboard Others: Power button, reset button
- LED Indicator Light: 2 * 35lm lights
- Update: Online and local update
IPC Test
- Camera Access: ONVIF
- Resolution: 1MP, 1.3MP, 2MP, 3MP, 4MP, 5MP, 6MP, 8MP, and 12MP
- Camera Initialization: Yes
- Video Display: Live view, snapshots, records, digital zoom, and H.264/H.265 decoding
- Function Control: Support IPC modifications such as resolution, IP, and account password, and restoring IPC to factory settings
Analog Video Test
- Format: HDCVI, HDTVI, AHD, and CVBS (NTSC, PAL)
- Resolution:
* HDCVI: 2MP@25 fps/30 fps, 4MP@25 fps/30 fps, 5MP@20 fps, 6MP@20 fps, 4K@12.5 fps/15 fps
* HDTVI: 2MP@25 fps/30 fps, 4MP@25 fps/30 fps, 5MP@20 fps
* AHD: 2MP@25 fps/30 fps, 4MP@25 fps/30 fps
* CVBS: NTSC, PAL - Function Control: OSD menu display and PTZ control
- Video Display: Live view, snapshots, records, and digital zoom
- Video Signal:
* Generator: Generate PAL and NTSC video test signals
* Generate HDCVI, HDTVI, and AHD video test signals with 720/1080P
RS–485 Control
- Communication Protocol: More than 30 protocols such as Pelco-D/P, Samsung, Panasonic, Lilin, and Yaan
- Baud Rate: 150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600 bps, and 19200 bps
