CSB HR1234W Lead acid sealed battery 12V 9Ah with high discharge current
Product Code: 460HR1234W
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €21.6225 | €26.37945 |
| 1 | Promo | €18.37913 | €22.422539 |
| 10 | 5% | €17.46017 | €21.301407 |

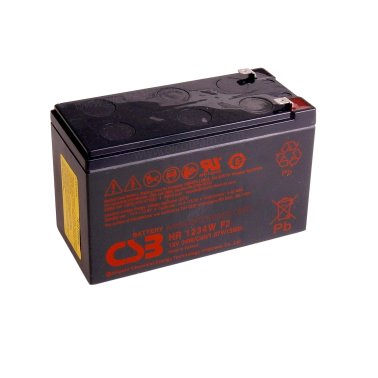

CSB HR1234W Lead-acid sealed battery 12V 9Ah with high discharge current and 6.35 mm faston
CSB HR series (High Rate Discharge) rechargeable battery, particularly suitable for use in UPS systems, security systems, toys and light traction systems. It offers very high performance in fast discharges and high reliability and robustness.
The standard 7 / 9Ah format is the most used in various sectors of electronics, home automation, entertainment, both home, office and industrial applications. For example it is used in emergency lamps with automatic ignition (eg Beghelli 8666 and 8805), in alarm systems (eg Fracarro BT6,5.1 999271, Comelit 30076003), in many ups models (such as APC RBC2, RBC5 cartridges , RBC8, RBC9, RBC22, RBC23, RBC24, RBC25, RBC31, RBC32, RBC48, RBC49, RBC51, RBC53, RBC54, RBC57, RBC59, RBC60, RBC62, RBC63, SYBT3, SYBT4, SYBT5) and in some toy cars (eg . Peg Perego Ducati GP, Ducati Hypermotard, Corral T-Rex, Polaris Outlaw, John Deere Ground Force, John Deere Ground Loader - after recovering the pre-existing wiring).
Specifications
- Nominal voltage: 12V
- Nominal capacity @ 15 minute-rate to 1.67V per cell: 34W
- Length: 154 mm
- Depth: 64 mm
- Height: 94 mm (excluding fastons)
- Height: 98 mm (including fastons)
- Connection: 6.35 mm faston
