Connector for Connecting Chandeliers, Spotlights and Lighting Bodies
Product Code: 324224-101XI
Inventory Status:
in stock
| Quantity | Price | VAT excluded | VAT included |
|---|---|---|---|
| 1 | Default | €0.1736 | €0.211792 |
| 1 | Promo | €0.14756 | €0.180023 |
| 10 | 10% | €0.1328 | €0.162016 |
| 25 | 20% | €0.11805 | €0.144021 |
| 50 | 30% | €0.10329 | €0.126014 |
| 100 | 40% | €0.08854 | €0.108019 |
* During the order confirmation phase, the prices including VAT will be rounded to the second decimal place according to with current legislation
1 Way Chandelier Connector
Space is important in electrical systems and a few millimeters of difference can be important if not decisive. The YX602 connector makes connecting all types of cables directly into the junction boxes a quick and easy operation. Potential applications can be the connection of automatisms, electric shutters, doors and gates and lighting systems, LEDs, etc.
Main features
- Nominal tension
- 300 Volt UL
- 450 Volt VDE
- Nominal Current
- 22 Ampere UL
- 24 Ampere VDE
- Cable section: 22 - 12 AWG 2.5 mm
The connector has a cage spring entry for stranded cables and a swing spring entry for rigid cables or ferrules.

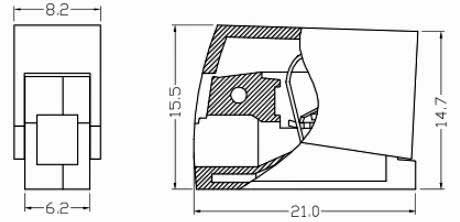

Dimensions and overall dimensions
Product codes: XY602, 224-101XY
