BI Technologies 898-3-R4.7K Resistive Network 4,7K Ohm 16 PIN 2%
Product Code: 101898-3-4K7

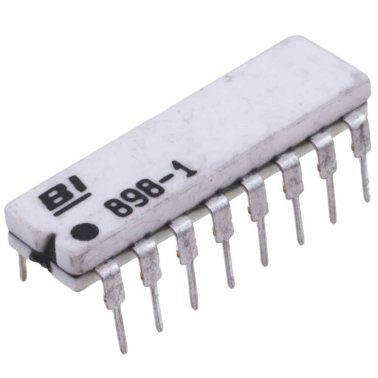

BI 898-3-R4.7K Resistive Network 8 x 4,7 KOhm (8 isolated elements)
Resistive network formed integrated circuit with 8 isolated resistors.
Technical specifications
- Resistor values: 4.7 KOhm
- Tolerance: 2%
- Number of resistors: 8
- Circuit type: N isolated elements
- Number of pins: 16
- Case: DIP-16
- Pitch: 2.54mm
- Power per element: 250mW (1/4 W)
- Rated voltage: 100V
Further information can be found in the attached datasheet.
Internal diagram
Dimensions
Component NOS (New Old Stock) No RoHS
Part Number: 898-3-R4.7K
