Brand:
Aten
Aten CS82A 2 Port Desktop KVM Switch
Product Code: 840AT-CS82AC
Inventory Status:
discontinued
The Aten CS82A is a KVM (Keyboard, Video, Mouse) switch with integrated PS / 2 ports both on the front panel (for connecting keyboard and mouse) and on the rear panel (for connecting computers to be controlled). It is capable of controlling 2 computers / servers via a single console and allows the user to switch from one computer to another via the keys on the front panel or via a combination of keyboard keys. Solution particularly suitable for control in industrial and professional environments thanks to the possibility of replacing the cables supplied with cables of greater length or with USB connection, if the machines to be controlled do not have PS / 2 ports.
FEATURES
- One PS / 2 console controls 2 computers
- Computer selection via front panel buttons and hotkeys
- Higher quality video, up to 1920 x 1440; DDC2B
- It supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse and IBM ScrollPoint mouse
- Compact and robust, all-metal case
- Keyboard and mouse emulation for error-free startup
- Auto Scan function to monitor the operation of the computer
- Not powered

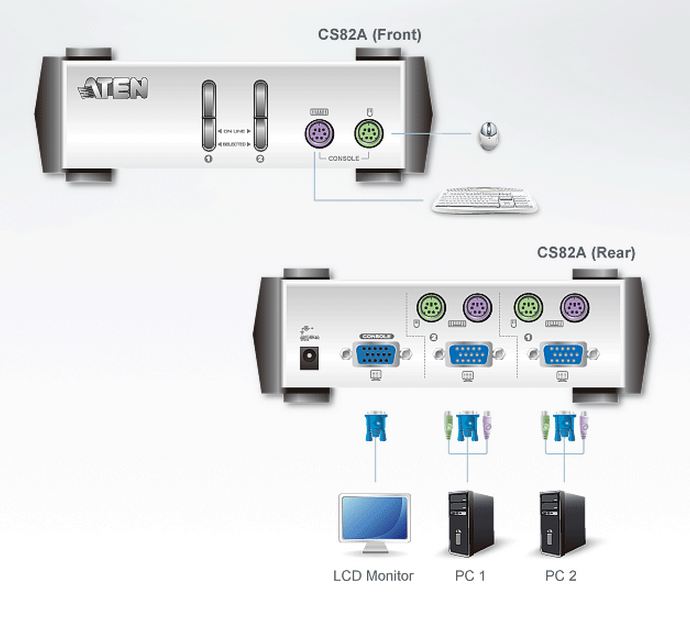

APPLICATION EXAMPLE
SPECIFICATIONS
| N. Connections | 2 | ||
| Port selection mode | Hotkey, button | ||
| Connectors | Console ports | Keyboard | 1 x 6-pin Mini-DIN Female (purple) |
| Video | 1 x HDB-15 Female (blue) | ||
| Mouse | 1 x 6-pin mini-DIN female (green) | ||
| KVM ports | Keyboard | 2 x 6-pin Mini-DIN Female (purple) | |
| Video | 2 x HDB-15 Male (blue) | ||
| Mouse | 2 x 6-pin mini-DIN female (green) | ||
| Diet | 1 x DC Jack (Black) | ||
| Switches | Brings | 2 x Button | |
| LED | On Line | 2 (orange) | |
| Selected | 2 (green) | ||
| Emulation | Keyboard / Mouse | PS / 2 | |
| Video | 1920 x 1440; DDC2B | ||
| Scan range | 3, 5, 10, 20 seconds | ||
| Consumption | DC9V, 1.08W | ||
| Environment | Operating temp. | 0 ° ~ 50 ° C | |
| Storage Temp. | -20 ° ~ 60 ° C | ||
| Humidity | 0 ~ 80% RH, non-condensing | ||
| Physical properties | Housing | Metal | |
| Weight | 0.42 kg | ||
| Dimensions (L x W x H) | 14.00 x 8.70 x 5.50cm | ||
SUPPLIED
- 1 x 2 Port KVM Switch
- 2 x 2L-5001P / C cable PS / 2 KVM cable length 1.2mt
- 1 x User Instructions
