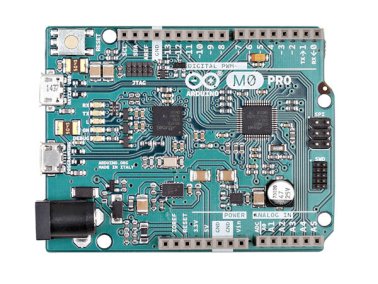

Arduino M0 Pro

Arduino M0 Pro

The Arduino M0 Pro board represents the (32-bit) extension of the Arduino UNO platform. The board is based on the Atmel SAMD21 microcontroller, with a 32-bit ARM Cortex® M0 + core. The power of the Atmel core gives this board incredible flexibility and increases the scope of projects they can think and do, making the M0 Pro the ideal teaching tool for learning and developing 32-bit applications. The board's built-in Debugger, Atmel (EDBG) , provides a complete debugging interface, with no need for additional hardware, making debugging much easier. EDBG also supports a virtual COM port for device programming and Arduino boot loader functionality.

Features

• Microcontroller - ATSAMD21G18, 48pin LQFP
• Operating voltage - 3.3V
• Digital I / O Pins - 14, with 12 PWM and UART
• Analog input pin - 6, 12-bit ADC channels
• Analog output pin - 1, 10-bit DAC
• DC Current for I / O Pin - 7 mA
• Flash memory - 256 KB
• SRAM - 32 KB
• EEPROM - up to 16KB
• Clock frequency - 48 MHz

Arduino code: A000111
