Marca: Amphenol

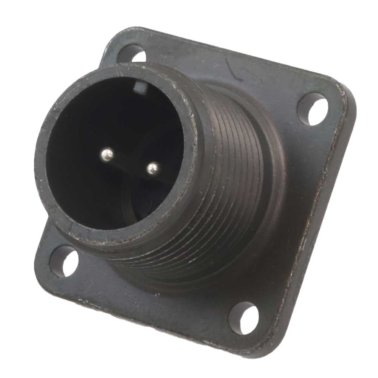

Amphenol MS3102A12S-3P connettore circolare MIL 2 poli maschio da pannello

Art. #: 326MS3102A12S-3P

Disponibilità: disponibile
Quantità Prezzo IVA esclusa IVA inclusa*
1 Listino € 16,55 € 20,19
1 Promo € 14,895 € 18,172
* In fase di conferma d'ordine, i prezzi IVA inclusa verranno arrotondati alla seconda cifra decimale in accordo alla normativa vigente
Quantità

Amphenol Industrial MS3102A12S-3P

Amphenol 97 series connectors are a durable, cost-effective commercial SAE-AS50151 (MIL-DTL-5015) connector available in a variety of shell styles, sizes, contacts, and layouts. Contacts are silver-plated with pre-tinned solder cups. These Amphenol 97 series connectors are excellent for industrial applications including robotics, machine tools and welding. For full product information on Amphenol 97 series connectors, please see the specifications below.
  • Specification: MIL-DTL-5015
  • Shielding: Yes
  • Connector Type: Circular
  • Connector Style: Receptacle
  • Mounting Type: Box - Front Mount - Thru Holes
  • Contacts, # of: 2
  • Contact Style: Pin
  • Termination Method: Solder
  • Insert Arrangement: 12S-2
  • Contact Size: 2#16S
  • Contacts Supplied: Yes
  • Contact Material: Brass or Copper Alloy
  • Contact Plating: Silver
  • Shell Material: Aluminum Alloy
  • Shell Plating: Olive Drab Chromate over Cadmium
  • Shell Color: Olive Drab
  • Insert Material: Neoprene
  • Amperage Rating: 13A
  • Operating Voltage AC V RMS Max: 200
  • Operating Temperature °F (°C): +257 (+125) for 60 hours, +185 (+85) for 1000 hours
  • Contact Mating Life: 100
  • Insert Rotation/Keying: Normal
  • Operating Voltage DC: 250
  • Orientation: Straight
